Pneumatic Cylinders
Aeroflex supplies pneumatic cylinders used in:
- Industrial automation systems
- Assembly lines
- Packaging machinery
- Material handling equipment
Cylinders are selected based on:
- Bore and stroke requirements
- Mounting configuration
- Operating pressure
- Load conditions
Solutions are configured for consistent motion control.
BORE DIA
32,40,50,63,80,100,125
STROKE LENGTH
from 25mm to 1800mm

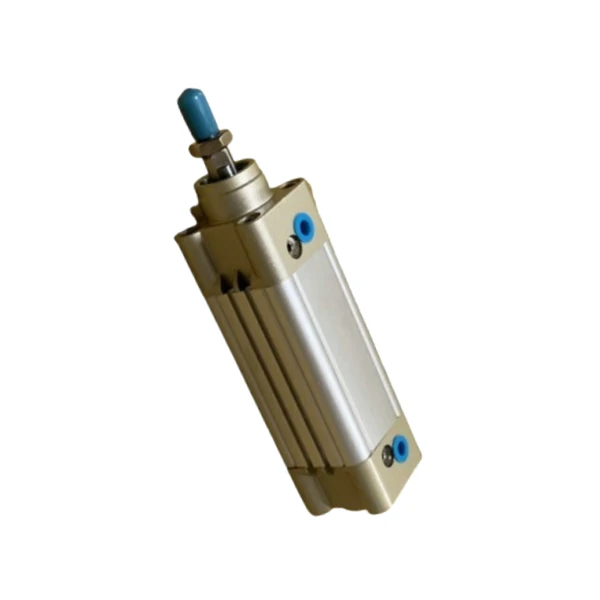

TGD SERIES DOUBLE ACTING MAGNETIC CYLINDER-ISO 6431
BORE DIA
32,40,50,63,80,100,125,160,200,250
STROKE LENGTH
from 25mm to 1800mm

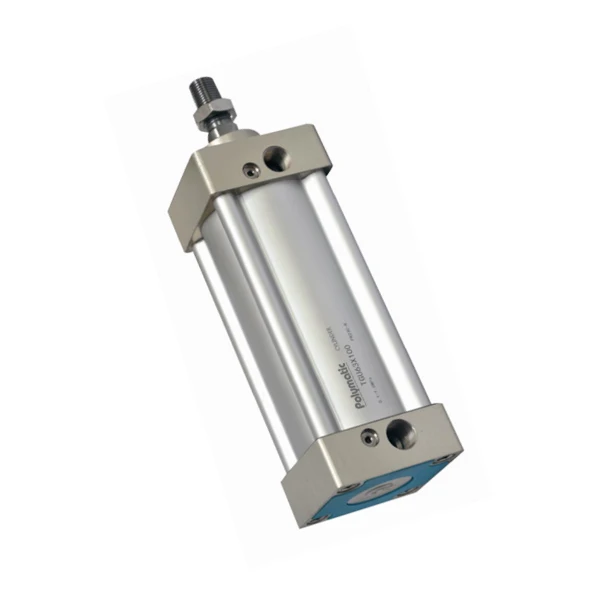

TGC-SERIES DOUBLE ACTING STANDARD CYLINDER
BORE DIA
32,40,50,63,80,100
STROKE LENGTH
from 25mm to 1800mm
TGU SERIES DOUBLE ACTING MICKY MOUSE CYLINDER
BORE DIA
16,20,25,32,40
STROKE LENGTH
from 25mm to 800mm

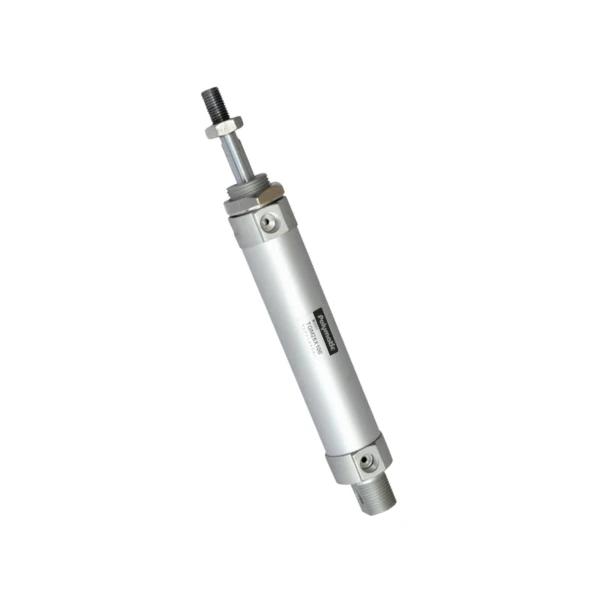

TGM SERIES DOUBLE ACTING ALUMINIUM MINI CYLINDER
BORE DIA
8,10,12,16,20,25,32
STROKE LENGTH
from 25mm to 800mm

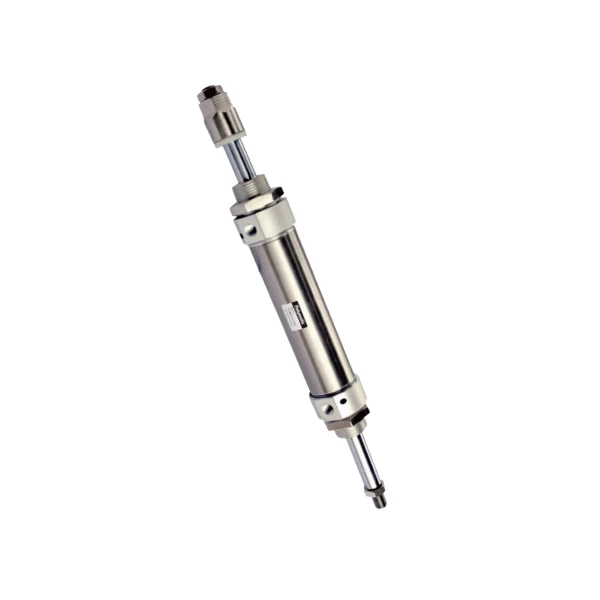

TGL SERIES DOUBLE ACTING MAGNETIC MINI SS CYLINDER - ISO6432
BORE DIA
12,16,20,25,32,40,50,63,80,100
STROKE LENGTH
from 5mm to 150mm

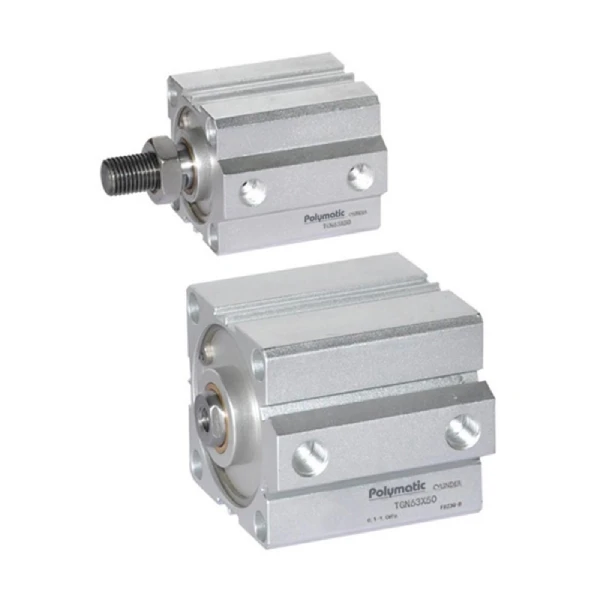

TGN SERIES DOUBLE ACTING COMPACT CYLINDER
BORE DIA
16,20,25,32,40,50,63,80
STROKE LENGTH
from 5mm to 150mm

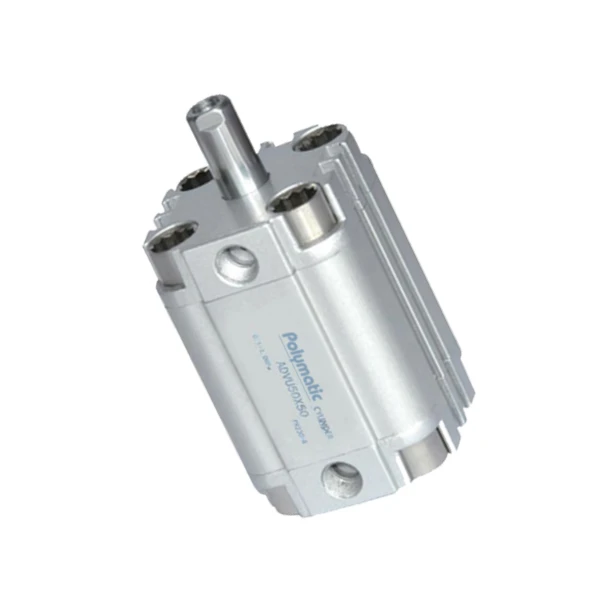

ADVU SERIES DOUBLE ACTING COMPACT MAGNETIC CYLINDER
BORE DIA
16,20,25,32,40,50,60,80,100
STROKE LENGTH
from 5mm to 150mm
